Garage doors

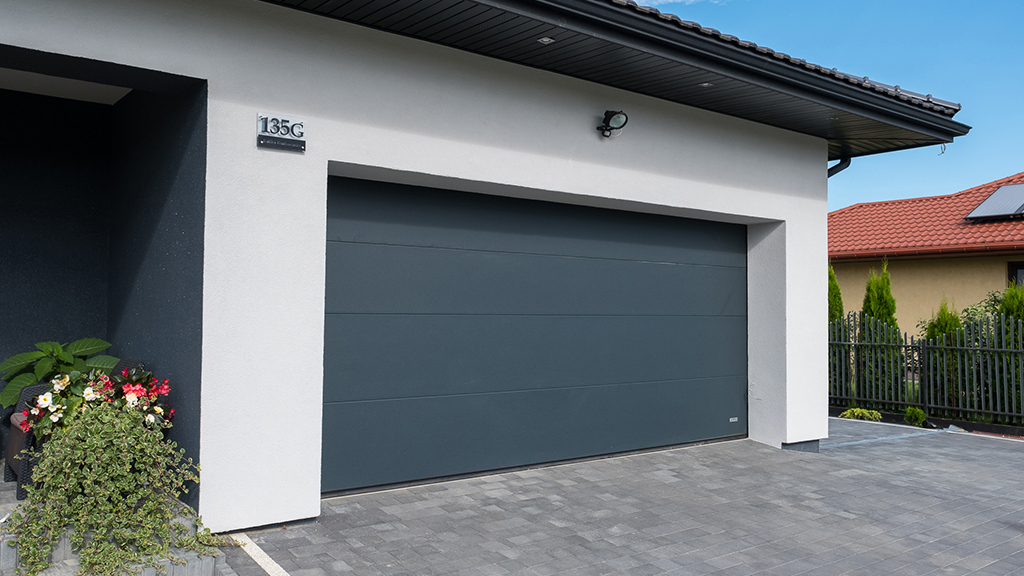

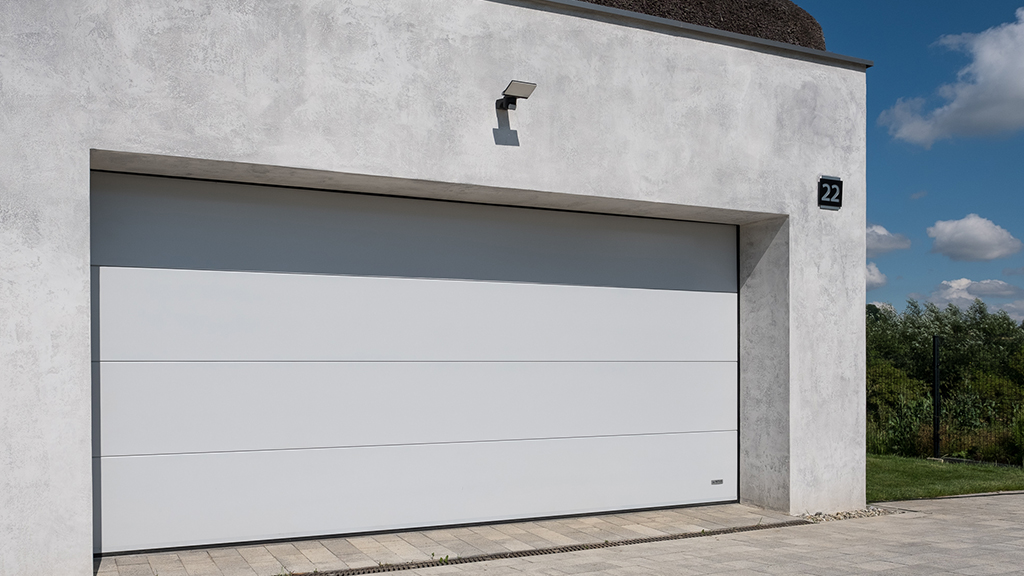

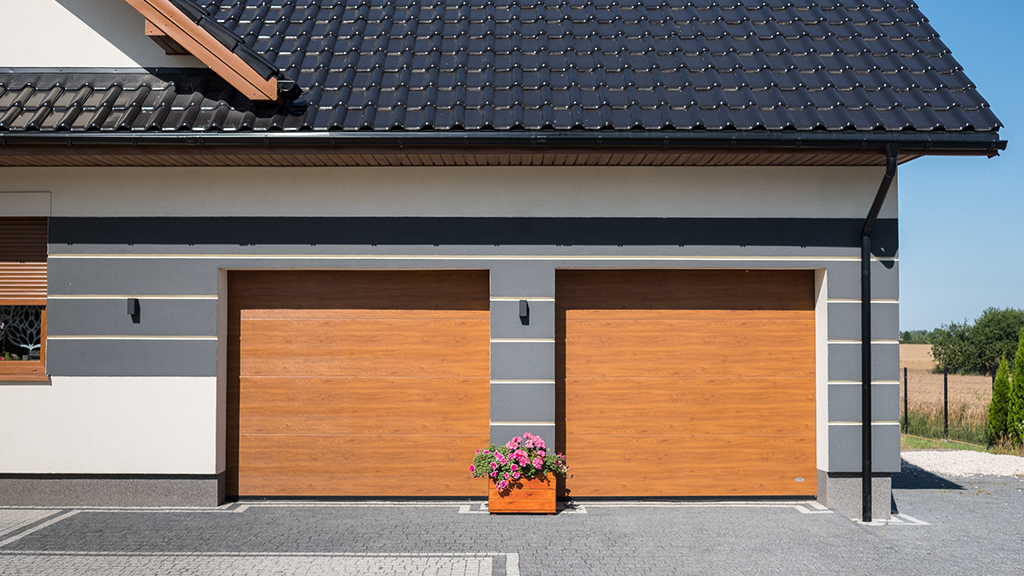

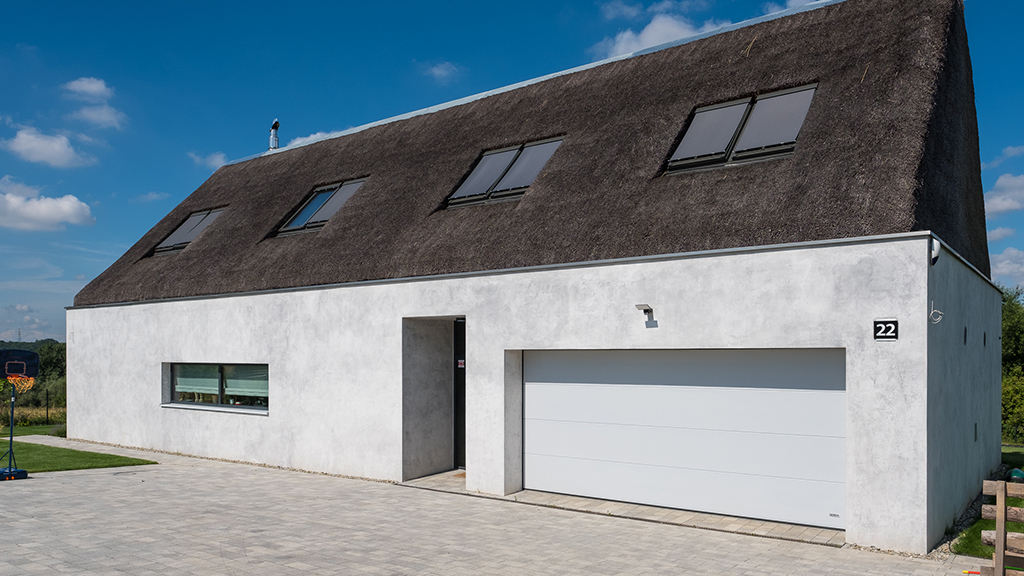

Sectional garage doors

Sectional garage doors are the most popular products used in single or multi-family houses. It is the first choice of customers who look for a robust and functional garage door. The smart design of Nitus sectional doors provides excellent thermal and sound insulation, as well as safety and comfort of use. As an experienced manufacturer of garage doors, we offer the highest quality sectional doors that can be made to any dimensions.

Sectional garage door design

The door leaf is made of 500, 555 and 610 mm high steel panels depending on the height of the door. The door curtain is made of 40 mm thick panels filled with Freon-free polyurethane foam. The panels are coated with varnish or covered with PVC film. Each panel is finished with metal fittings or aluminium profiles. The bottom panel features weatherstrip seal, while the top panel seal could be lintel-mounted or top-panel-mounted. At panel joints, a seal and a finger protection system are used to protect against finger trapping. All components of our doors are carefully selected and tested, which guarantees uninterrupted operation, and thus protection is various emergency conditions. Nitus sectional garage doors meet the requirements of PN-EN 13241-1 European standard concerning the safety in use.

  1. Door panels
  2. Top seal
  3. Bottom seal
  4. Vertical guides
  5. Horizontal guides
  6. Intermediate hinges
  7. Side hinges with rollers
  8. Bottom roller brackets
  9. Shaft
  10. Torsion springs
  11. Cable drums
  12. Spacer bar
  13. Electric drive unit
  14. Drive unit rail

Budowa bramy segmentowej garażowej

Types of tracks

Our offer includes three types of tracks that allow to perfectly match the door to your garage specification. Opening of the garage door is assisted by torsion springs with standard lifespan of 20 thousand cycles.

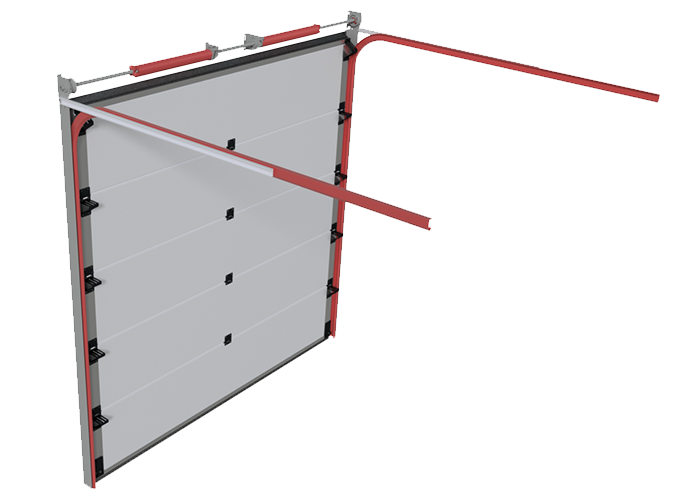

Prowadzenie standardowe bramy segmentowej garażowej
Standard tracks (S) - minimum lintel height is 350 mm 350 mm

Torsion springs installed at the front by the lintel, door with single tracks.

Prowadzenie niski przód w bramie segmentowej garażowej
Low tracks, torsion springs at the front (F) - minimum lintel height is 200 mm

Torsion springs installed in the front by the lintel, door with double horizontal tracks.

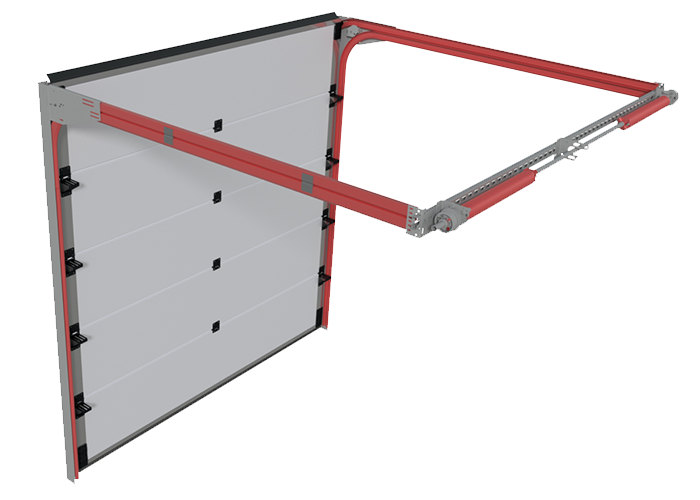

Prowadzenie niski tył w bramie segmentowej garażowej
Low tracks, torsion springs at the rear (R) - minimum lintel height is 80 mm (manual door) or 120 mm (automatic door)

Torsion springs installed at the end of double horizontal tracks.

Features of Nitus sectional garage doors

Thermal insulation

The garage door panels are made of steel sheet and filled with durable thermal insulation. In addition, the door has a circumferential sealing system that protects the garage interior against uncontrolled heat loss, moisture and wind.

Safety

Durable structure and top quality materials provide resistance to weather conditions. The use of multiple protections guarantees a high level of security, garage entrance protection and comfort during use.

Space saving

During opening, the door panels move along specially profiled guides upwards until all panels are under the ceiling. As a result, no additional space is required inside the garage and in front of it. This is important in case of short driveways or garages located close to the street.

Design

One of the main advantages of sectional doors is its modern and elegant appearance. Our customers may choose from a variety of colours, structures and four rib patterns. This allows us to perfectly match door appearance to any architectural solution.

Safe operation of the sectional garage door

Zabezpieczenie finger protection w bramie segmentowej
Safe panels

In our sectional doors, we have introduced a number of special solutions to ensure their safe operation. One of them is the finger protection system at the panel joints. Special shape of the panels provides protection against finger trapping during opening and closing the garage door.

Zabezpieczenie zamknięcia bramy segmnetowej
Manual slide bolt

The standard equipment of manual and automatic sectional garage doors includes a slide bolt mounted and operated from the inside. Used primarily in gates without a lock, it effectively protects against lifting the bolted garage door from the outside.

Brama segmentowa z zamkiem
Lock

The lock with a handle is recommended for gates installed in garages without an additional entrance. This type of lock is used in Nitus automatic sectional garage doors when opening or closing the door, e.g. by using a remote control, is not possible.

Sectional garage doors automatic control

Our offer includes top-quality drive units for sectional garage doors. We use the automatic control units of recognised brands such as Somfy, Sommer, Came, which ensures the operation is comfortable and faultless for many years.

Zabezpieczenie przeciążeniowe w automatycznych bramach segmentowych
Overload safety device

When the panels encounter an obstacle, the door leaf automatically stops and withdraws to an open position.

System awaryjnego zasilania w automatycznych bramach segmentowych
Backup power supply

In case of mains power failure, further door operation is possible due to the battery backup that provides an alternative power supply.

Inteligentne fotokomórki w bramach segmentowych
Photocells

Photocells stop closing of the garage door and withdraw it to the open position as soon as an obstacle in the opening is detected.

Zdalne sterowanie automatyczną bramą segmentową
Control system

Operating a sectional garage door from the car with remote controls is a standard. Due to the development of modern technologies, the garage door can be also controlled with a smartphone or tablet. The smart control system ensures even greater comfort of use. With the system, the garage door can be operated from anywhere in the world.

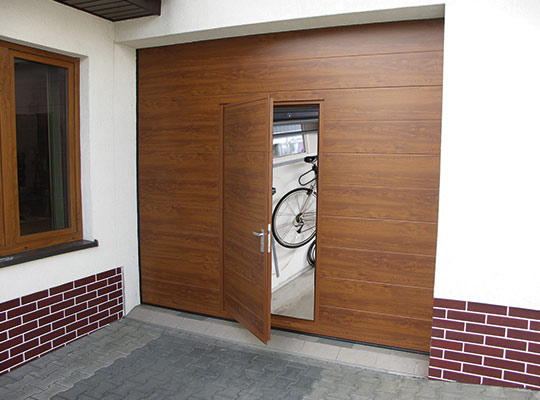

Sectional garage door with wicket door

A sectional garage door with wicket door is a very functional and practical solution. The garage fulfils its main function, providing shelter for your car, and also serves as a utility room or home workshop. Wicket door in a sectional garage door ensures greater comfort and saves time. When entering the garage through the service door, the heat loss is much smaller. Our automatic sectional garage doors feature a wicket door opening sensor as standard. It ensures that automatic opening of the garage door is only possible when the wicket door is closed. Aluminium glazed profiles can be an interesting addition to this type of door. For greater comfort, our offer also includes service doors with a low-profile 25 mm aluminium door threshold.

Brama garażowa segmentowa wyposażona w furtkę przejściową

Modern design

To meet changing trends in modern construction sector, we have developed a unique palette of patterns and colours for Nitus sectional garage doors. Our own panel lining line allows us to offer our customers the possibility to adapt the door to the architectural concept and colour of the building. The colour collection includes standard colours and a wide range of wood-effect and metallic surfaces. The colours also include the RAL palette.

Standard colours

White

RAL 9016

Brown

RAL 8014

Silver

RAL 9006

Anthracite Grey

RAL 7016

Graphite

(Wrinkle)

Anthracite

Dark Oak

Golden Oak

Walnut

Group 1

Złoty dąb

UK101-Z8

Orzech

UK103-Z8

Mahoń

UJ301-Z8

Dąb ciemny

UQ901-Z8

Sapeli

UR602-Z8

Dąb bagienny

UR401-Z8

Czarna Wiśnia

UJ401-Z8

Macore

US601-Z8

Oregon

Dąb naturalny

UR001-Z8

Dąb jasny

UQ902-Z8

Stucco

G0402-G7

Dąb rustykalny

G1501-Z8

Mersey Oak

G0401-G7

Winchester

A1002-Z3

Daglezja

G0502-Z8

Sosna Polska

G4301-G7

Zabytkowa Sosna

B2303-G7

Sosna Antyczna

B2302-G7

Sosna Palona

B2304-G7

Sienna Polska

UR101-Z3

Sienna Rosso

UR102-Z3

Sienna Noce

UR103-Z3

Czekolada

NDS62-Z8

Czarnobrązowy

KDD17-Z8

Ciemnozielony Deska

GAP45-Z4

Ciemnozielony

GAP45-Z8

Jasnozielony Deska

GAP80-Z4

Niebieski

BER77-Z8

Biały

WAQ50-Z6

Kremowo-biały

YEM69-Z8

Jasnoszary

KACH7-Z8

Szary deska

KACV8-Z4

Szary

KACV8-Z8

Szary beton

GD802-D8

Bazaltowo-szary

KADF9-Z8

Kwarcowo-szary

KADF8-Z8

Antracyt Deska

KDB74-Z8

Group 2

Sheffield Oak light

F 456-3081

Shefield Oak grey

F 436-3086

Shefield Oak brown

F 436-3087

AnTEAK

9.3241002-119500

Irish Oak

9.3211 005-114800

Schwarzgrau Glatt 2

02.11.71.000042-809700

Brillantblau

02.11.51.000028-116700

Weinrot

02.11.31.000012-116700

Dunkelrot

02.1131.000013-116700

Soft Cherry

9.3214 009-119500

Rustic Cherry

9.3214 007-119500

Aluminium

SS101-89

Jasnosrebrny

DJ605-42

Srebrny

DJ606-42

Szary Gładki

KACV8-F7

Bazaltowo-szary Gładki

KADF9-F7

Moosgrün

02.11.61.000013-116700

Antracyt Gładki

KDB74-F7

Piaskowy Tytan

D2573-F7

Group 3

Fango matt CC+

F 446-6051

American Brown matt CC+

F 446-6042

Braun matt CC+

F 446-7052

Schwarzbraun matt CC+

F 446-6010

Jet black matt CC+

F 446-6062

Eiche kolonial CC+

F 446-2076

Eiche mocca CC+

F 446-2075

Sipo CC+

F 446-2060

Macoree CC+

F 446-2001

Sapeli CC+

F 446-2002

Montana Eiche tabak CC+

F 446-2007

Jet black STYLO CC+

F 446-4062

Structures

Excellent visual effect can be achieved not only by choosing the colour, but also by selecting the structure of the sectional garage door. As part of the current offer, our customers can choose between two types of surface finish. The door panels are offered with “smoothgrain” or “woodgrain” surface structures.

Smoothgrain

Woodgrain

Rib patterns

Nitus sectional garage doors are available with several rib patterns. The selection of offered options allows to emphasize an interesting design of the product and tailor it to the preferences of customers who value modern solutions.

  1. Without ribs
  2. Single rib
  3. Low ribs
  4. V ribs

Wzory przetłoczeń w bramie segmentowej garażowej

Sectional garage doors glazing

We have expanded the visual appearance with additional elements, such as portholes or aluminium glazed panels. They make the garage is filled with more daylight. Therefore, Nitus sectional garage doors can be fitted with glazing of various sizes, colours and shapes: rectangular, oval, round, and square.

Porthole I1

Porthole I2

Porthole O1

Porthole P1

Porthole P2

Porthole P3

Porthole P4

Porthole W1
