Garage doors

Sectional side-hinged garage doors

The design of sectional side-hinged doors corresponds to traditional side-hinged doors that have been available on the market for many years. Currently, their design, operation and aesthetic qualities have evolved to include solutions derived from sectional doors. Double-leaf side-hinged doors are a new, advanced type of garage door that is offered by only few manufacturers. They are intended for utility rooms, residential buildings and free-standing garages. They are an excellent solution for renovated buildings that do not have external reveals or lintels. We adapt Nitus sectional side-hinged doors to customers’ requirements, therefore they are manufactured to custom sizes. The maximum size of sectional double-leaf door is 2600 x 2250 mm.

Robust design

The design of Nitus sectional door is based on robust aluminium profiles. The aluminium door frame is reinforced with 40×40 mm galvanized steel profiles. The door has a small 10 mm high threshold. The door leaf is made of solid 40mm thick door panels filled with polyurethane foam. The door has a circumferential sealing and a brush seal at the bottom. The door is supplied in a symmetrical leaf division, and it always opens to the outside. The right active wing has a lock with a key cylinder and a handle, as well as top and bottom door bolts.

Brama rozwierna segmentowa wyposażona w rygiel

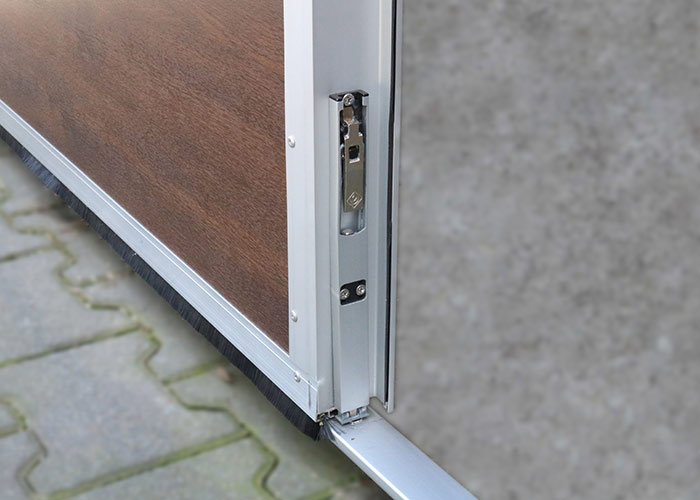

Top and bottom door bolt
Standardowe wyposażenie bramy rozwiernej segmentowej w klamkę z kluczykiem

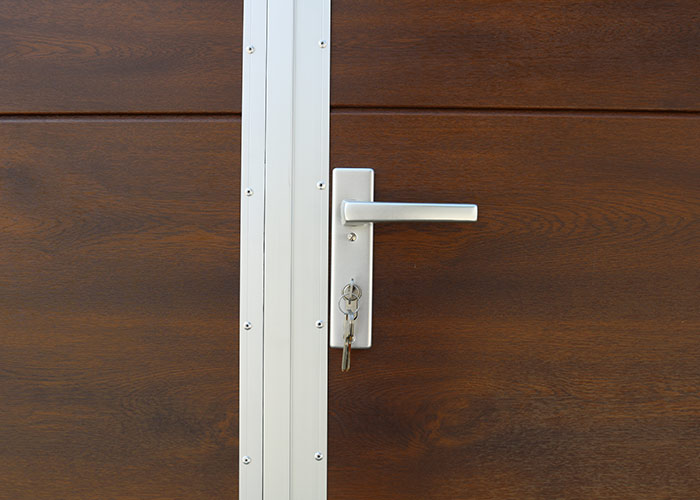

Handle with a key
Aluminiowy próg w bramie rozwiernej segmentowej

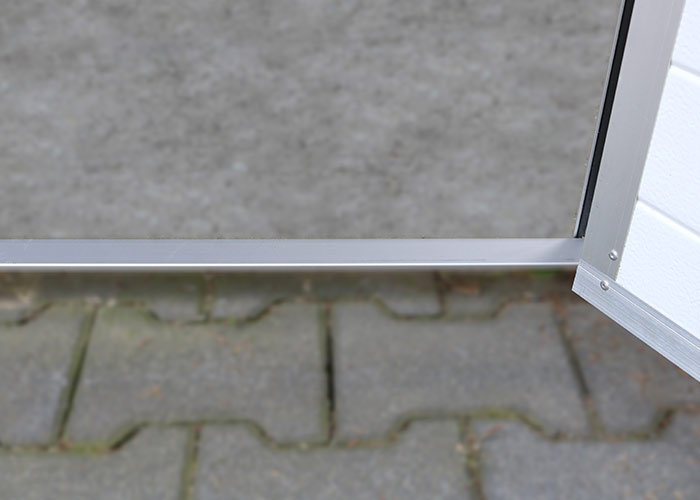

Aluminium door threshold
Szczotka uszczelniająca bramę rozwierną segmentową

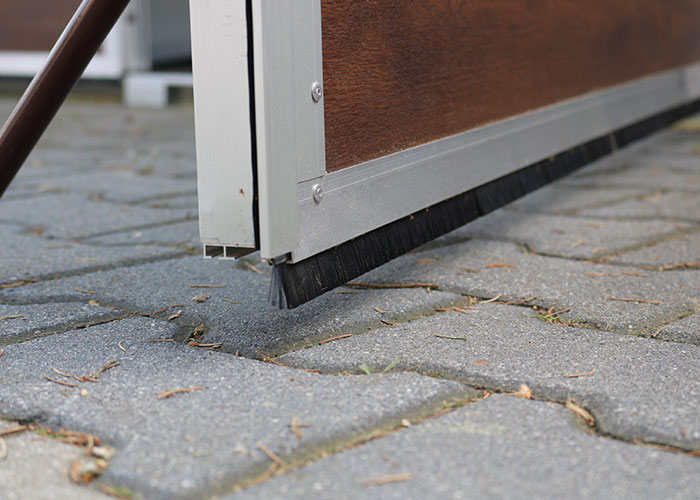

Brush seal
Stopka zabezpieczająca skrzydło bramy

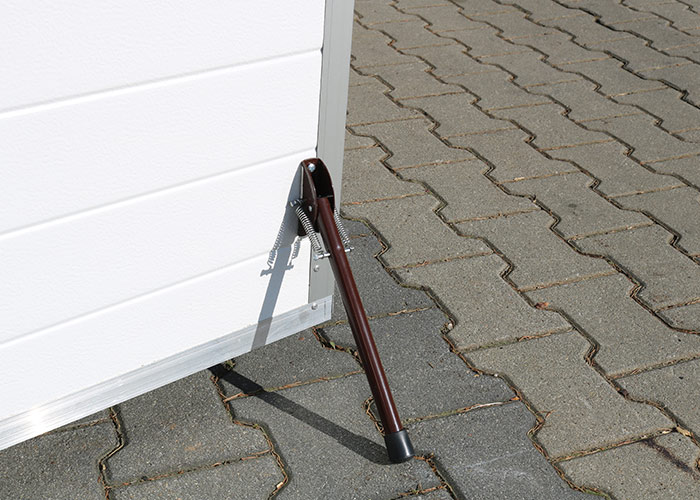

Foot
Samozamykacz listwowy w bramie rozwiernej segmentowej

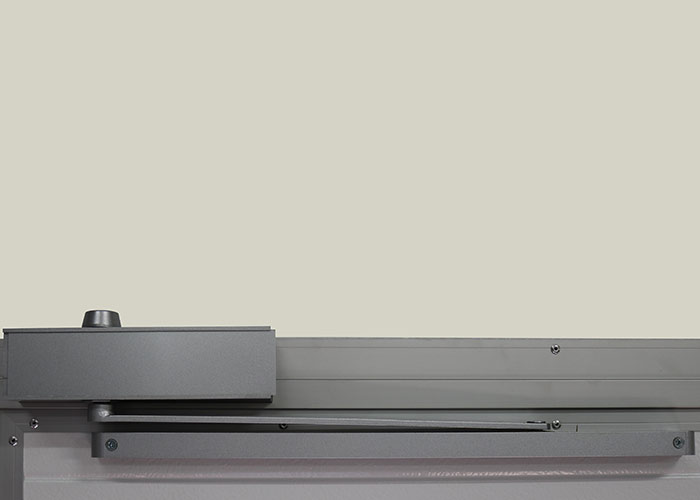

Door closer with slide channel

Features of Nitus industrial side-hinged doors

Thermal insulation

The door leaf is made of panels insulated inside with Freon-free polyurethane foam. In combination with the circumferential sealing system, high thermal insulation properties are achieved.

Comfort

An automatic double-leaf side-hinged door is a solution that ensures comfort and safety of use. Selection of a suitable drive unit, additional accessories and safety devices allow to achieve the highest level of customer satisfaction.

Flexibility

Our sectional side-hinged doors can be manufactured to any size of opening. When designing our products, we take into account specification and requirements of a room, considering even the smallest differences in the structure. As a result, the door fits perfectly into the opening, which in turn translates into faultless operation of the mechanism.

Design

Various design options of our sectional side-hinged doors emphasize a unique appearance of the building. Many accessories that increase the comfort of use, a wide range of colours and various rib patterns contribute to achieving an elegant final result.

Sectional side-hinged door automatic control

A double-leaf side-hinged door can be operated manually or automatically. Installing the drive unit could provide much greater comfort of use. The door can be controlled with a remote control form inside the car. Such handy solution protects drivers against adverse weather conditions – rain or strong wind. We supply sectional side-hinged doors with Sommer”Aperto Light” automatic control units that guarantee quiet and reliable operation. The set includes a number of accessories – remote controls, wall-mounted push button, photocells – which significantly increase comfort and safety of use.

Bramy rozwierne segmentowe dopasowane w detalach

Modern design

A wide range of colours for sectional side-hinged doors includes standard colours and wood-effect patterns, so that the product can match not only windows and doors, but also the building façade, roof or gutters. The offered colour solutions reflect the latest trends in civil engineering sector making Nitus garage doors a strong architectural element of the building.

Standard colours

White

RAL 9016

Brown

RAL 8014

Silver

RAL 9006

Anthracite Grey

RAL 7016

Graphite

(Wrinkle)

Anthracite

Dark oak

Golden Oak

Walnut

Wood-effect veneers

Antracyt Deska

KDB74-Z8

Dąb bagienny

UR401-Z8

Dąb ciemny

UQ901-Z8

Winchester

A1002-Z3

Structures

An interesting visual effect can be achieved not only by colours, but also by the surface structure. Nitus sectional side-hinged door panels can be delivered in one of two offered options.

Smoothgrain

Woodgrain

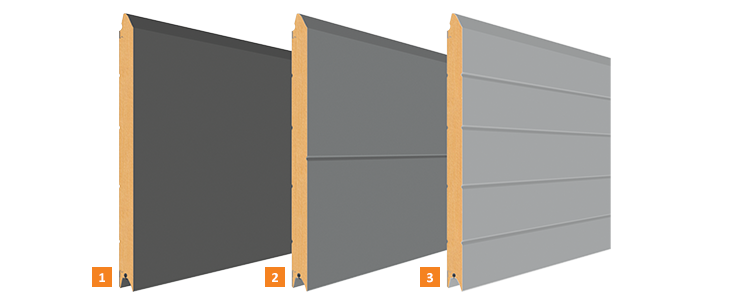

Rib patterns

Visual specification of our sectional side-hinged doors includes three types of ribs:

  1. Without ribs,
  2. Single rib,
  3. Low ribs

Przetłoczenia bram rozwiernych segmentowych
